Anaerobic Treatment

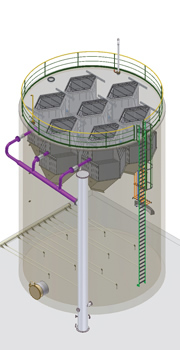

E2E Anaerobic Reactor
Effluent to Energy
- The E2E Reactor is a fluidized bed reactor designed for the anaerobic treatment of industrial waste water
- Due to its unique settler design, the E2E can handle wastewaters in a broad concentration range
- Adjustable hydrodynamics enables the system to retain biomass with different characteristics
- The system contains a robust, easily maintainable distribution system
- The three-phase modular settler system consists of differentiated gas/water and sludge/water separation compartments, which allows a very effective separation of effluent, biomass and biogas.
- The hydrodynamics in the settler can be adjusted to the type of sludge formed
- The biogas is collected in the headspace of the reactor and from there transported to the gas train
- The up-flow velocity in the main body of the reactor can be controlled through external circulation over the settler system
