Anaerobic Treatment | Sludge Dewatering

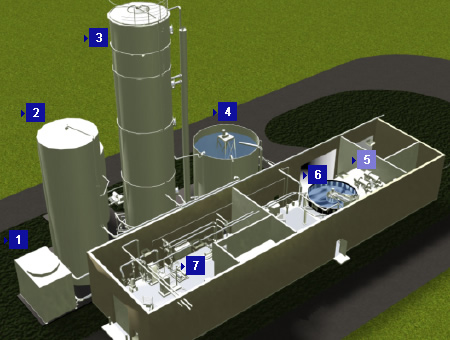

| 1 | Cooling Tower |
| 2 | Pre-Acidification |
| 3 | R2S Anaerobic Reactor |
| 4 | Flash Aeration |
| 5 | Sludge Dewatering |
| 6 | Dissolved Air Flotation |
| 7 | Chemical & Nutrient Dosing |
BLUE PRESS
Sludge Handling and Storage
- Double wire press suitable for mixed primary sludge with bio content or for biological sludge
- Integrated mixing tank for optimized adding and mixing of flocculants
- Feeding chamber for homogenous distribution of the sludge throughÂout the entire width of the belt
- The gravity area allows the release of the free water before pressing the sludge through the belts
- Specially shaped profile for gradual increase of the applied pressure for enhanced dewatering and separation from free water
- S-Roll area with decreasing diameter of rolls for gradual pressure increase
- Adjustable Pressure Roll for final increase of dryness
- Pneumatic tensioning system for belt tension control
- Automatic belt alignment control
- Separated collection of filtrates from gravity and pressing area for possible separate use or treatment
